1 Set Sizing Karl Mayer PROSIZE Year 2023 4700mm Delivery

Description

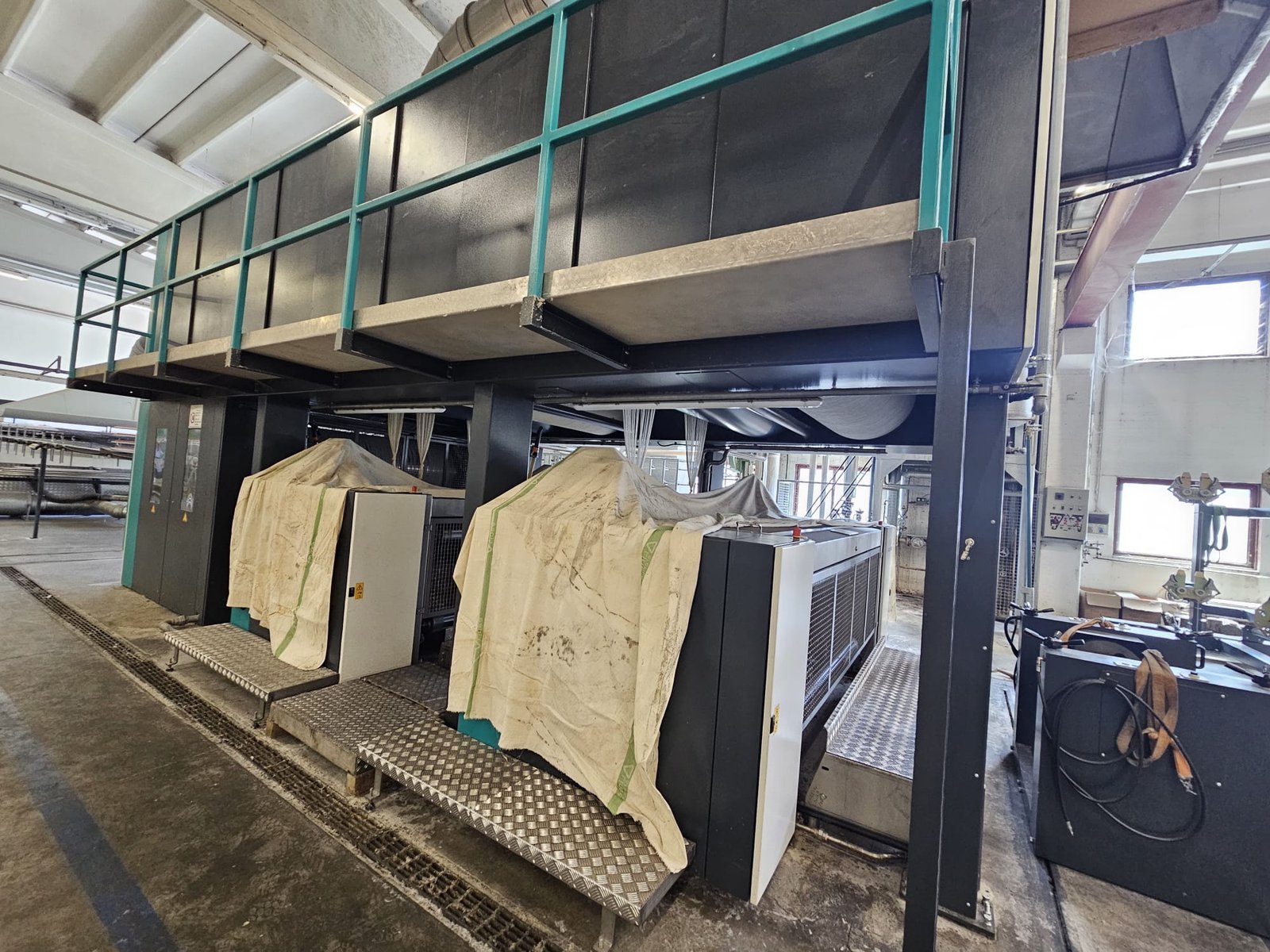

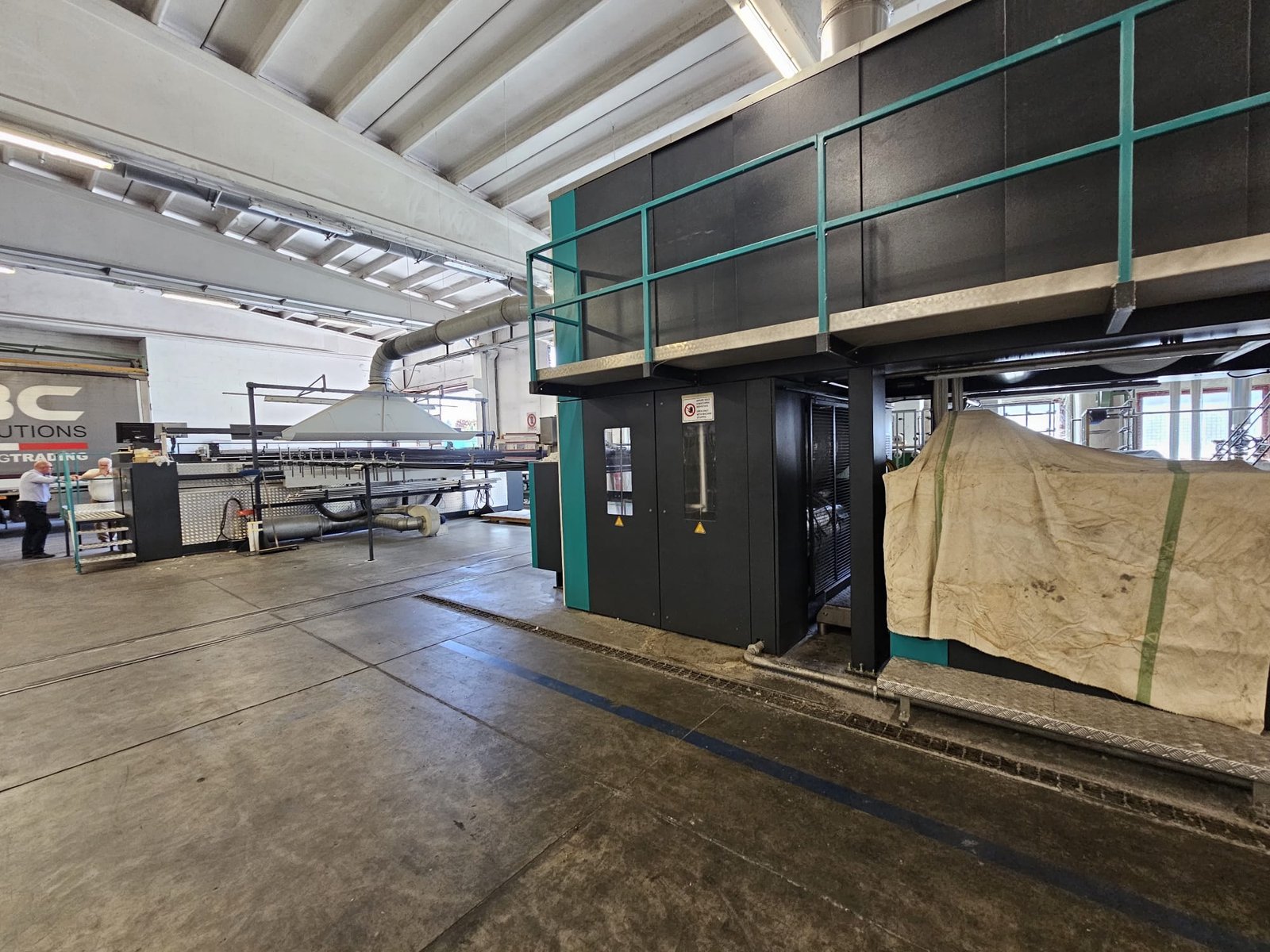

1 Set Sizing Karl Mayer, Model PROSIZE,
Year 2023, Delivery Width 2000mm/4700mm, Max beam dia 1250mm
Min Beam barrel diameter 150 mm,
Fully automated sizing and beaming with modern drives
KAMCOS (Karl Mayer Command System) central control system
Double winding motor – 2 × 45 kW AC motors controlled by inverters
Double direction of yarn winding, Max speed: 200 m/min
Max winding tension: 12,000 N, Creep speed: 0.5 m/min
23 stainless steel Separation rods, Ø 35 mm
Waxing unit at dryer exit
Residual moisture measuring device at dryer exit – type ETV

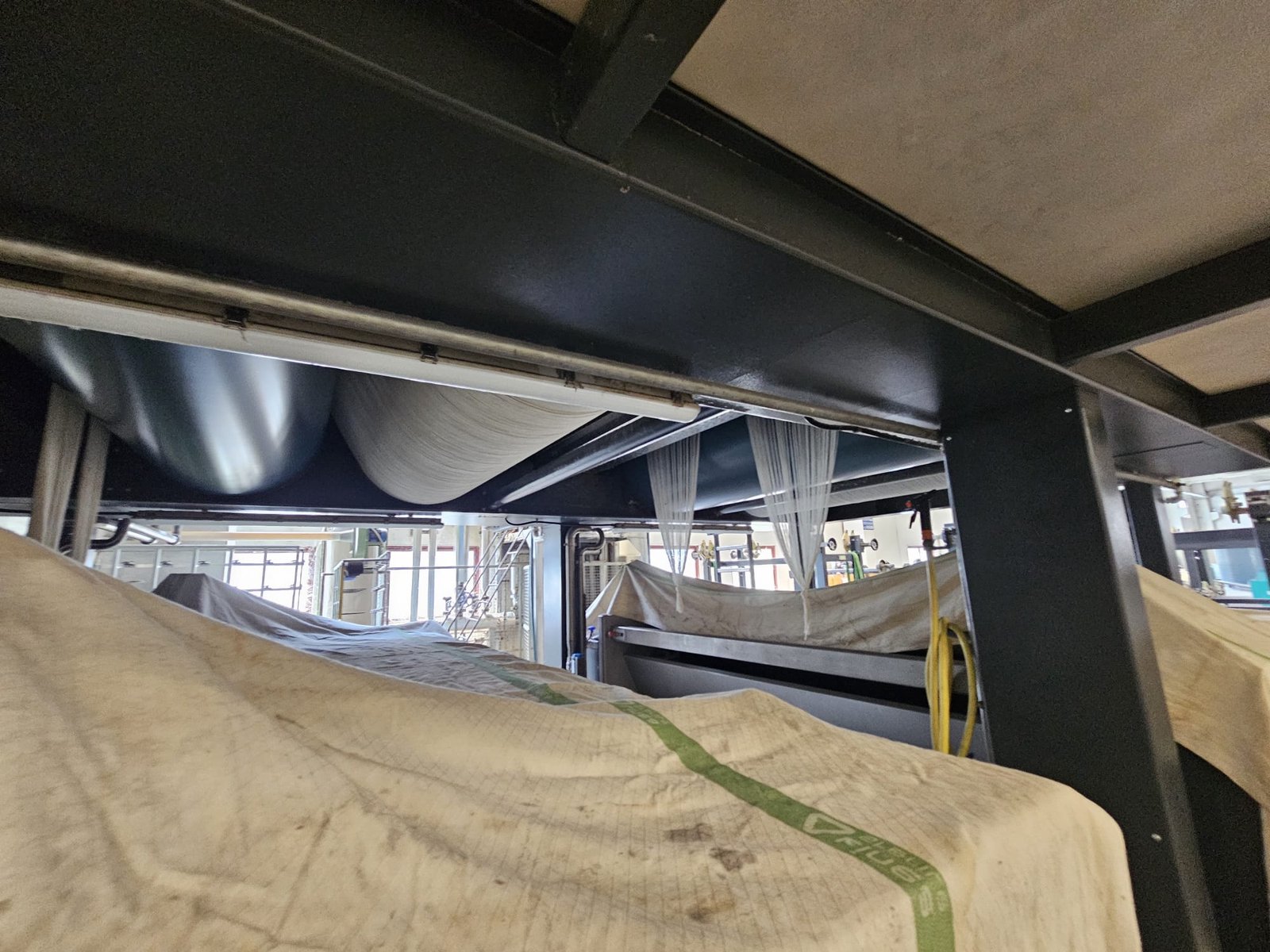

16 Drying Cylinder in total, 12 Teflon coated, Ø 800 mm
Max working temperature: 164 °C, Max pressure 5 bar

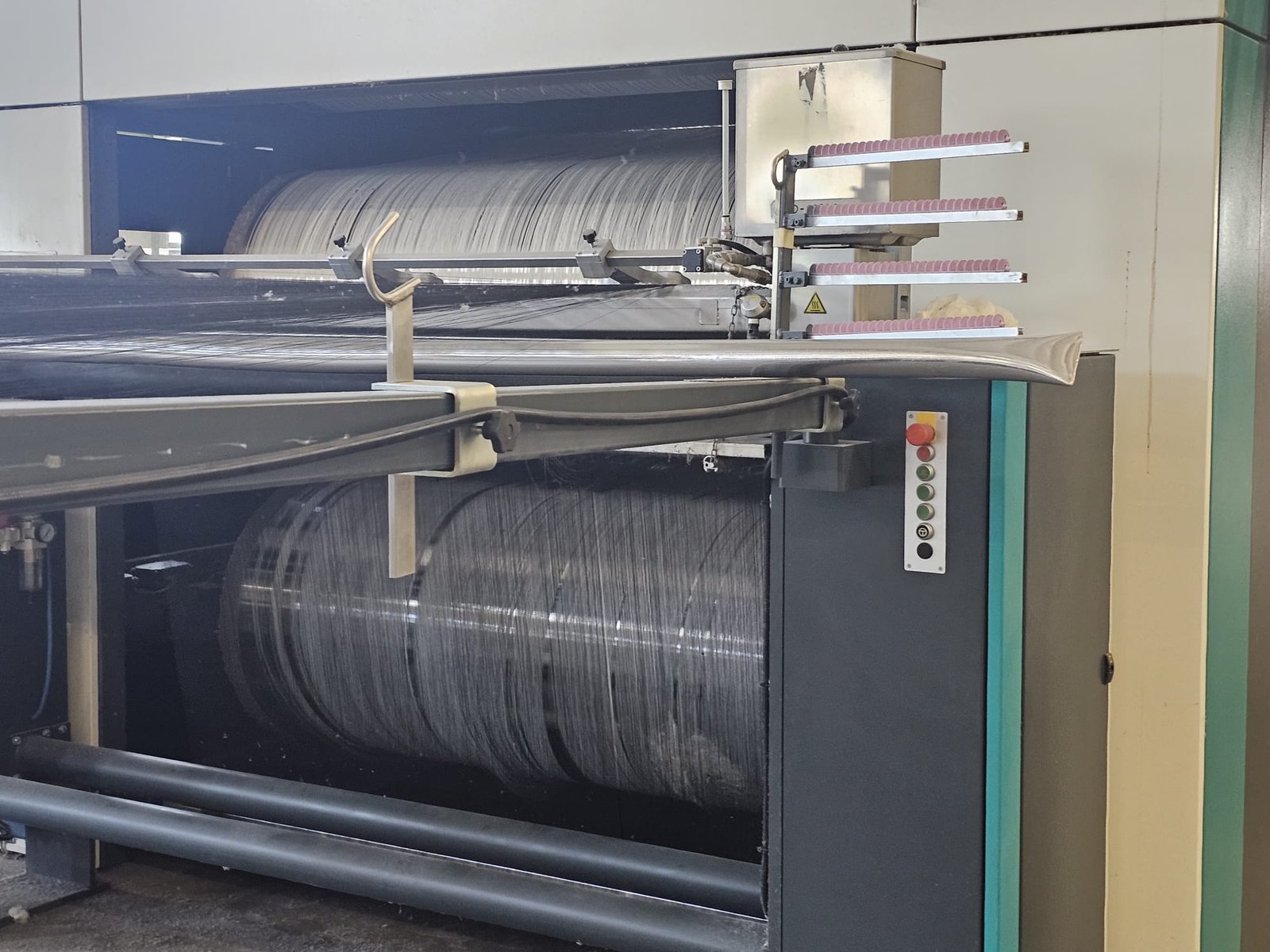

2 PROSIZE Sizing Unit, with 4 drying cylinder each with Teflon coated

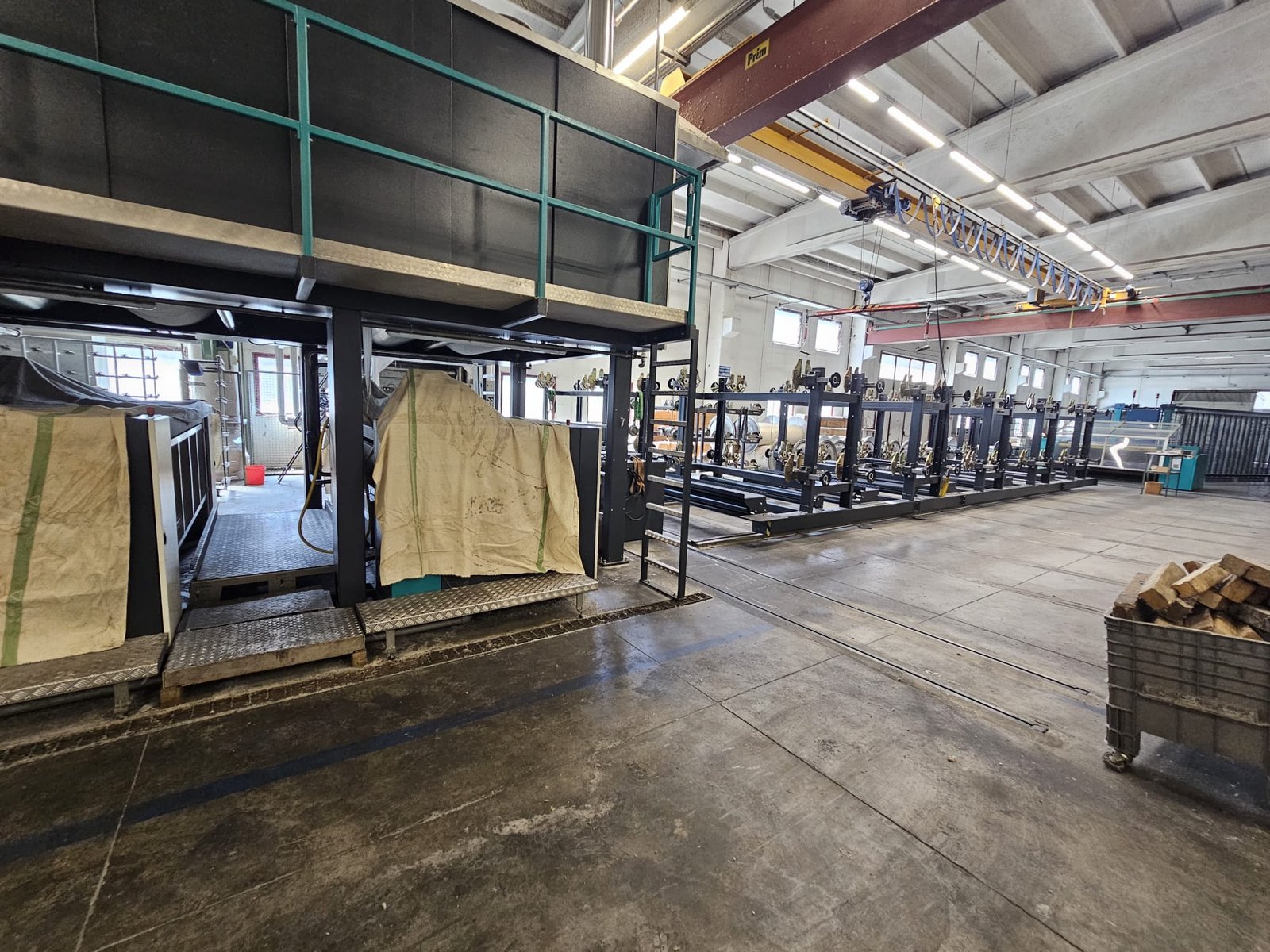

1 Sectional Warping Beam creel

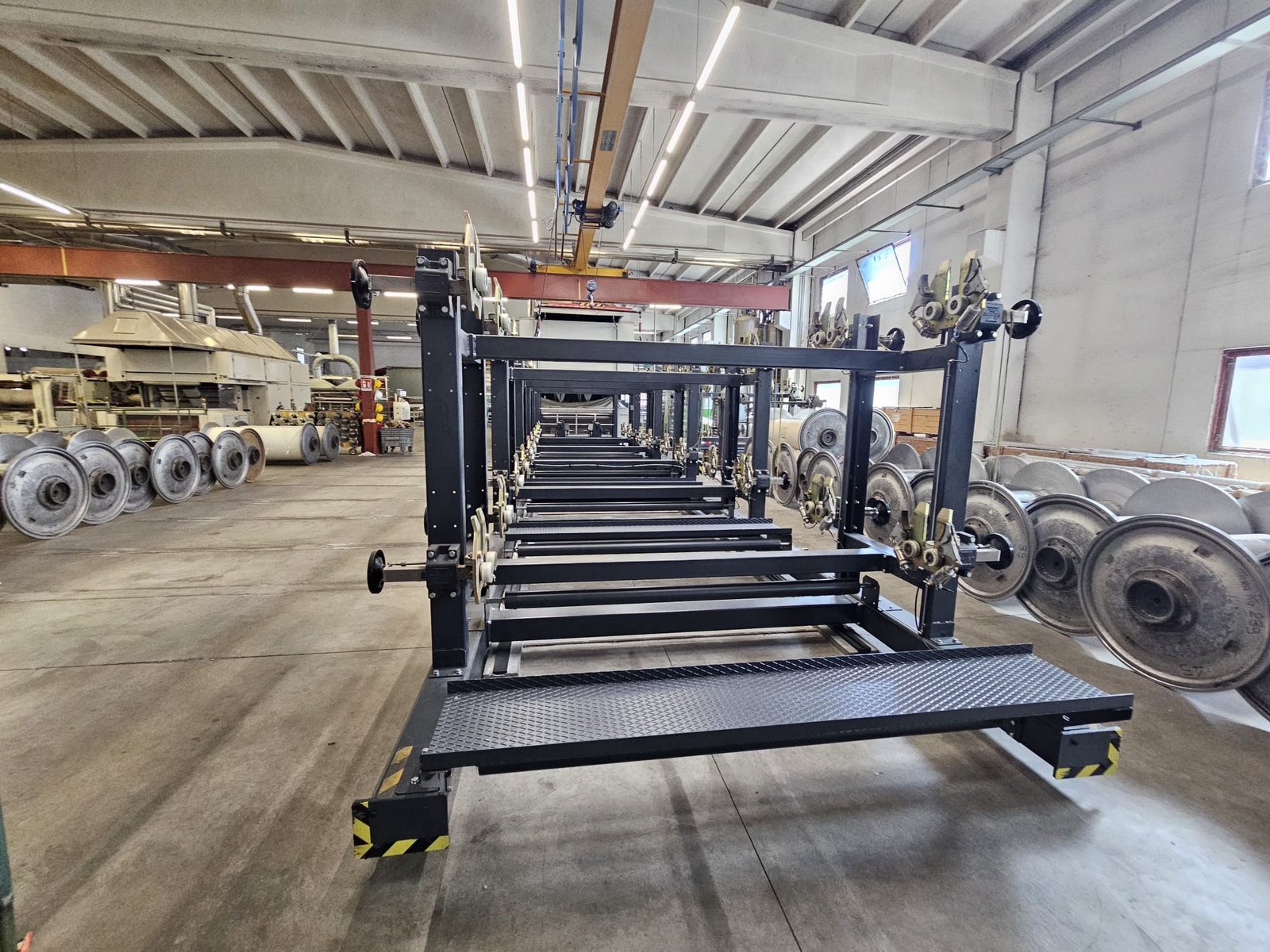

Direct warping beam creel for 24 beams capacity, with Pneumatic Breaking
Working width 2000mm/ beam dia1000mm
Electrical cabinet complete with air conditioning unit
1 cooking tank with capacity 1,000 litres
